Our deep bench of production engineering expertise is your newest resource.
Our engineers are seasoned experts in progressive stamping tooling and assembly systems. When you work with our team, we decades of experience to the table, helping you hone your product and enhance the reputation of your brand for years to come.
Engineering at a Glance
- In-house die design allows for quick reaction to design changes
- Design assistance provides feedback to improve manufacturability, quality, and cost.
- Tooling and assembly solutions to meet a wide range of annual volume requirements.
- We work with Inventory, AutoCAD, Pro Engineer, and Solidworks
- We work with Inventor, AutoCAD, Pro Engineer, and SOLIDWORKS.

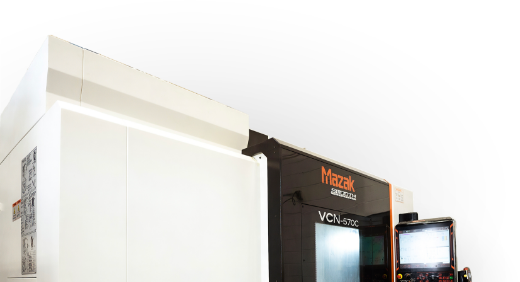

- CAM Machinist allow us to take the most intricate and complicated surfaces and machine them quickly.
Die Design
We specialize in designing progressive stamping dies up to 96″ in length. In designing our dies, we look for opportunities to improve efficiency—both in our material use, and in the number of parts that can be produced from each die. Our engineering team will work with yours to provide responsive design feedback for feasibility and cost, and to accommodate any design changes quickly.
Capabilities
- Press Tonnage from 100 to 330 Tons
- Press Speeds up to 250 Strokes per Minute
- Bed Lengths from 1200mm to 2400mm
Advantages
- Multi-Out, Family, and Offal Designs to maximize material utilization and minimize cost.
- In Die Tapping, In Die Part Insertion, Hybrid Progressive/Transfer Dies
- Close collaboration with tooling build department
Assembly System Design
Our process engineers work closely with our die designers to fully understand the specifications of the final stamped product and develop custom assembly solutions tailored to the next stage of manufacturing. Whether it involves robotic arms welding components, fully automated cells managing multiple assembly operations, or manual workstations for specialized tasks, we design flexible systems that adapt to your specific production needs.
Capabilities
- Low volume manual assemblies
- High volume fully automated systems
- Robotics
- Bowl Feeding
- Machine Vision
Advantages
- Ability to find optimal solutions for both low volume and high volume assemblies.
- Quality ensured with built in poka yoke and automated inspections.
- Flexible solutions designed to accommodate future variants and design changes.
Forming FEA
We utilize advanced Forming FEA simulation software support rapid iteration for forming station design prior to committing to hard tooling. Our FEA capabilities allow us to assess part manufacturability early in the design process, evaluate material stress across critical thresholds, and optimize die layouts for maximum efficiency and reliability.
Capabilities
- Analyze stress and strain
- Anticipate material thinning, thickening, and wrinkling
- Anticipate potential failure risks
Advantages
- Find manufacturability issues before cutting steel on new tooling.
- Rapidly evaluate potential designs for feasibility and provide feedback.
- Reduce the number of prototyping iterations to get to a final design.
We uphold an unwavering commitment to maintaining our engineering expertise in house.
The market moves fast and we maintain a team that is ready to move fast with it. When your product launch team can’t wait on answers due to tight timelines, our team is ready to support with rapid feedback and robust manufacturing solutions.
Intelligent automation: robotics, quality control, and supply chain visibility.
We invest in new technologies where they matter: to boost manufacturing output, enhance inspection systems, and streamline shipping and scheduling. Our efficiency is your efficiency.
We haven’t met a standard higher than our own.
From our due diligence during PPAP through our 8D problem solving approach, we follow the industry’s best quality control practices. We’ve even worked with our suppliers to help them bring their quality control up to our standards.
Our network is your network.
Many of our customers have additional process needs, such as plating, painting, brazing, heat treating, and more. We’ve developed relationships with local suppliers to handle these processes and work closely with them on production and quality control, making us your one-stop shop for progressive metal stamping.
